Transit photometry of exoplanet HAT-P-1b. Data analyzed using software by Jean-Claude Pelle, Southern Stars Observatories, Tahiti.
HAT-P-1b
BBOHAT-P-1b Transit
Exoplanet Transit Studies
Exoplanet transit observations and related data. Detecting planets around other stars through photometric measurements.
Extra-solar planetary transits (where the planet passes across the star in our line of sight) involve taking photometry data for several hours during the transit to detect the slight reduction in brightness of the star (increase in magnitude).
Transit Light Curves
Photometric observation of the exoplanet WASP-1b transiting its host star. Data processed at Tel Aviv University.
WASP-1b
BBOWASP-1b Transit

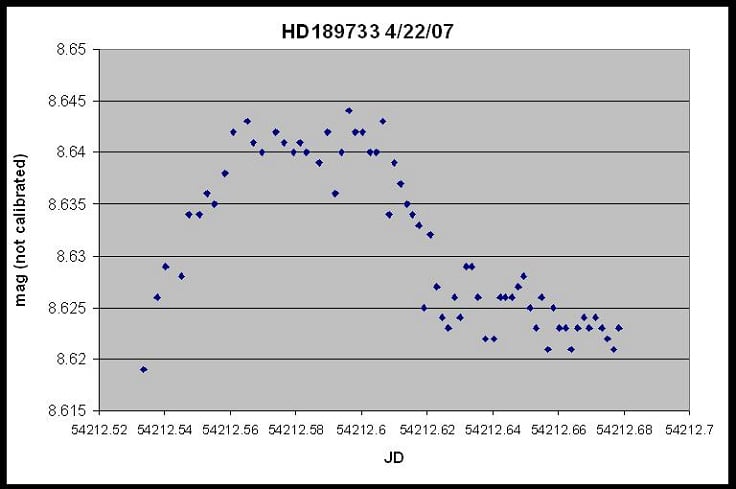

Transit observation of exoplanet HD 189733b, a hot Jupiter.
HD 189733b
H85HD 189733b Transit

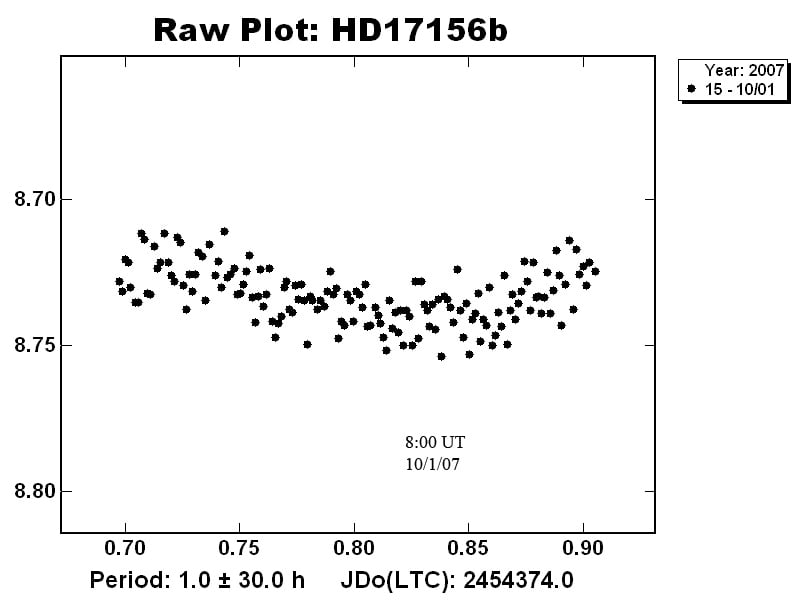

Transit observation of exoplanet HD 17156b.
HD 17156b
H85HD 17156b Transit

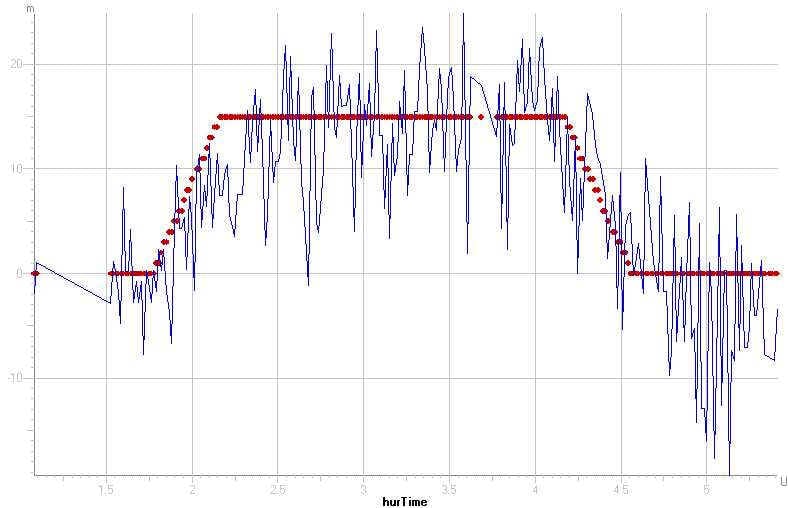

HAT-P-1b
Data from 12/12/2006, Blackbird Observatory, New Mexico. Analysis and software by Jean-Claude Pelle, Southern Stars Observatories, Tahiti.
The red curve shows published ingress and egress times and depth of transit.
Observatory:Blackbird Observatory (BBO)
Date:December 12, 2006
Telescope:20" RC

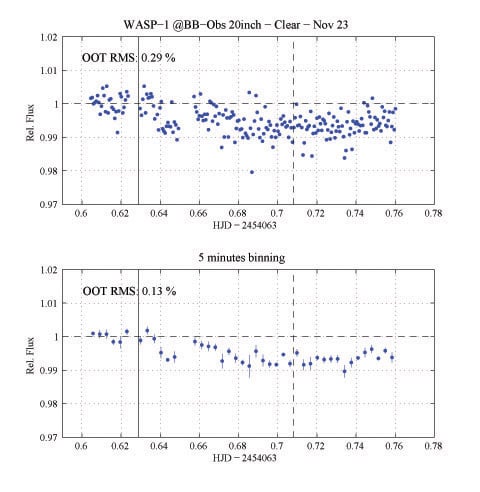

WASP-1b
Data from 11/23/2006, Blackbird Observatory 20" RC, New Mexico. Data processed at Tel Aviv University.
This exoplanet was notably in the news as having a detectable atmosphere.
Observatory:Blackbird Observatory (BBO)
Date:November 23, 2006
Telescope:20" RC
Resources
Amateur exoplanet data is collected and plotted at:
brucegary.net/AXA/x.htm →
